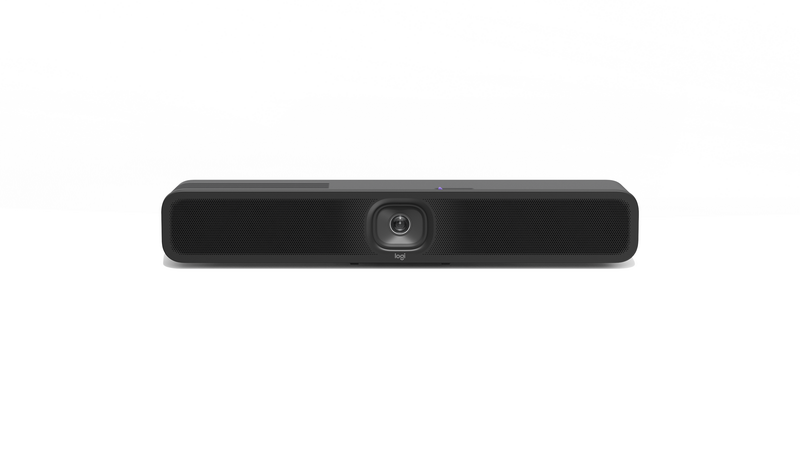

MeetUp 2 – USB Conference Camera

Upgrade Your Small USB Meeting Room

Bring AI-powered features to your small USB meeting room with MeetUp 2. Compatible with popular video platforms like Microsoft Teams, Zoom, and Google Meet, MeetUp 2 can operate in USB mode with an in-room PC or when connected to a laptop in BYOD mode.

MeetUp 2 is easy to set up and manage with Logitech Sync — monitor room status, deploy updates, and adjust settings, all from a single cloud-based application.

UNLOCK THE POWER OF AI IN YOUR SMALL MEETING ROOMS WITH BYOD AND PC

Upgrade your small meeting rooms with MeetUp 2, a video bar designed to simplify the meeting experience for employees and IT teams. MeetUp 2 offers a streamlined design, AI-enhanced audio and video features, and easy remote management when deployed on both PC and BYOD setups.

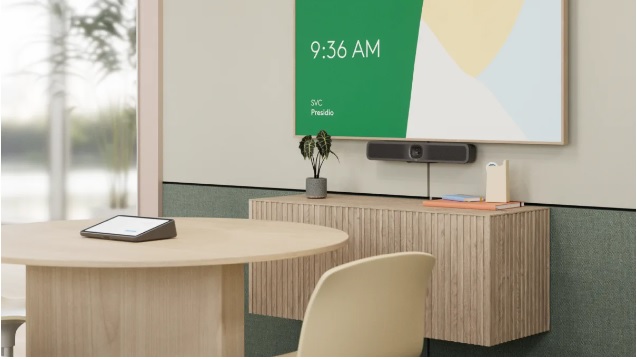

SIMPLE AND FLEXIBLE DEPLOYMENT IN SMALL ROOMS

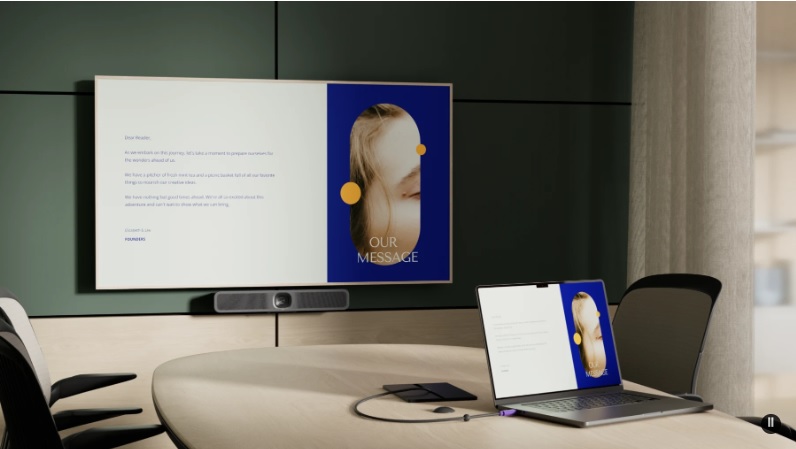

MeetUp 2 connects to a room system or directly to a laptop for BYOD meetings. Enable BYOD laptop connectivity using a standard two-cable setup or connect with a single cable through Logitech’s Active USB Cable (as shown here). Easily manage and set up MeetUp 2 for both deployment types using Logitech Sync.

AI-POWERED MEETINGS

Unlock AI-enhanced video and audio features through the integrated CollabOS platform. Additionally, users can enjoy seamless integration with Microsoft, Zoom, and Google for a smarter meeting experience.

ONE MOUNT, THREE WAYS

Achieve flexible positioning and easy installation with multiple included mounts, allowing you to attach MeetUp 2 to a display, table, or wall. Additionally, it features an integrated threaded insert, making it compatible with tripods.













Thông số kỹ thuật

Dimensions

  • Height: 73.3 mm

  • Width: 469.2 mm

  • Depth: 73 mm

  • Weight: 1.8 kg


Specifications

  • Array of 6 digital MEMS microphones (DMIC)

  • Digital PTZ camera

  • Full-range speaker with port

  • Cable management system

  • Multiple mounting points

  • Logitech CollabOS platform

  • Logitech RightSight 2

  • Logitech RightSound 2


General Specifications

  • Enclosure: All-in-one design

  • Device management: Logitech Sync

  • Supported display: BYOD mode: 1; Dedicated PC mode: depends on PC/application

  • Display resolution: 1080p

  • Network protocols supported: IPv4, IPv6

  • Proxy support: IP-based proxy, FQDN-based proxy, PAC file proxy


Camera

  • Digital pan range: ±48° at 4x zoom

  • Digital tilt range: ±32° at 4x zoom

  • Zoom: 4X HD digital zoom

  • Diagonal field of view: 120°

  • Horizontal field of view: 113°

  • Vertical field of view: 80°

  • Resolution: 4K


Speaker and Microphone

Speaker

  • Driver size: 55 mm with bass reflex enclosure and patented suspension system

  • Sensitivity: 83 dB SPL @1W ± 2dB at 1 meter

  • Rated power: 8W

  • THD at 1W, 1kHz: <2%

  • Speaker sampling rate: 48 kHz

  • Impedance: 4 ohms

Microphone

  • Frequency sensitivity: 90Hz – 16kHz

  • Sensitivity: -36 dBFS ±1 dB @ 1Pa

  • Microphone sampling rate: 48 kHz

  • Pickup range: Up to 7 meters

  • Beamforming elements: Six digital MEMS omnidirectional microphones creating five adaptive horizontal beam patterns

  • Audio processing: AEC (Acoustic Echo Cancellation), VAD (Voice Activity Detection)

  • Noise suppression: AI-based noise reduction algorithm





Interface

  • HDMI output: 1

  • HDMI input: 1

  • USB: 1 x USB Type-C 3.1

  • Network: 10/100/1G Ethernet

  • WiFi: 802.11a/b/g/n/ac

  • Bluetooth: Bluetooth® Low Energy technology


Power and Cables

  • Power supply: Auto-sensing

  • Voltage/Power: 100-240V, 19V, 2.1A

  • Power adapter dimensions: 114 x 47 x 32.3 mm

  • DC cable length: 3 m

  • USB-C to USB-C 3.0 cable length: 3 m


Environment

  • Operating temperature: 0 to 40°C

  • Storage temperature: -25 to 70°C

  • Humidity: 10 to 90%


Security

  • File-based encryption: USB port available

  • Data encryption: Symmetric keys, PKI

  • Device authentication: Protected by device certificates

  • Device access: API authenticated

  • Secure boot: Arm TrustZone, RPM

  • Physical security: Kensington lock slot


Warranty Information

  • 2-year hardware warranty

  • Optional 1-year and 3-year extended warranties available


Compatibility

  • Windows 10 or later

  • macOS: two latest versions

  • Network connectivity: wired or wireless


Packaging

  • MeetUp 2 all-in-one with multifunction mount

  • Power supply with region-specific plug

  • 3 m USB-C to USB-C 2.0 cable

  • 2 wall anchors and 2 screws

  • Quick start guide printed on box
