Logitech TAP SCHEDULER

Logitech TAP SCHEDULER

RIGHT PLACE, RIGHT TIME

Tap Scheduler makes it easy to view meeting details and book rooms for impromptu or scheduled meetings. It’s easy to deploy as a purpose-built scheduling panel for leading room booking solutions, helping employees find and secure the right space.

BLUE MEANS AVAILABLE

Quickly find an open room with color LED lights that indicate availability from a distance.

SIMPLE AND NEAT INSTALLATION

The included mounting brackets and cable management accessories ensure a tidy and professional setup.

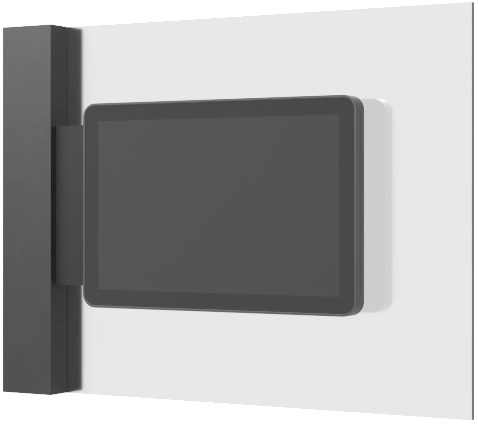

Glass Mounting: Secure the Tap Scheduler while maintaining a clean appearance on both sides of the glass.

Door Frame Mounting: Attach the Tap Scheduler to a door or window frame for better visibility using the included mounting bracket.

Wall Mounting: Place and secure the Tap Scheduler anywhere on the wall.

Cable Management: Hide cables inside the wall, along door frames, or in other directions with multiple wiring options.

PURPOSE-BUILT AS A SCHEDULING CONTROL PANEL

Tap Scheduler is designed for easy viewing and use, featuring a spacious screen and sleek, space-saving design. Trust Tap Scheduler for reliable performance with durable components built for long-lasting durability.

CHOOSE YOUR PLATFORM

Create a seamless meeting experience with Tap Scheduler and Logitech’s room solutions, integrated with Microsoft Teams®, Zoom Rooms™, and other service providers to elevate collaboration standards.*

Thông số kỹ thuật

  • Device Only

    • Height: 165 mm

    • Width: 246.2 mm

    • Depth: 28.5 mm

    • Weight: 0.7 kg

    Surface Mount

    • Height: 165 mm

    • Width: 246.2 mm

    • Depth: 31.4 mm

    Door Frame Mount

    • Height: 165 mm

    • Width: 292.6 mm

    • Depth: 44.5 mm

    Specifications

    Display

    • Size: 10.1” diagonal

    • IPS (landscape orientation)

    • LCD screen with LED backlight

    • Resolution: 1280 x 800

    • Touch: Capacitive, 10-point multi-touch

    • Brightness: 400 nits

    • Contrast ratio: 1000:1

    • Fingerprint resistance: Oleophobic coating (Ion-strengthened glass)

    • Viewing angle: 85° (Up/Down/Left/Right)

    • Mounting angle: 0° (flat on mounting surface)

    General Specifications

    • Built-in accelerometer

    • Built-in ambient light sensor

    • 100 mm x 100 mm VESA FDMI mount compatibility

    • Cable exit options: horizontal / vertical / center

COMPATIBILITY AND CERTIFICATIONS

Logitech Tap Scheduler integrates with leading room scheduling solutions such as:

  • Logitech Room Booking

  • Microsoft Teams Panel

  • Zoom Rooms Scheduling Display

  • Robin-Powered Scheduling Panel

  • Appspace

  • RICOH Spaces

  • Envoy Rooms

Visit www.logitech.com/support/tapscheduler-compatibility for the latest certifications and compatibility information.

Logitech CollabOS Platform

  • Remote management via Logitech Sync

Power and Cabling

  • Powered over PoE Ethernet, IEEE 802.3af Type 1, Device Type 3.
    Requires a PoE-enabled network or PoE injector and Ethernet cable (not included).

PORTS AND INTERFACES

  • Ethernet: 10/100 Mbps

  • WiFi: 802.11a/b/g/n/ac

  • Bluetooth 5.0 (disabled, for future use)

ENVIRONMENT

  • Operating temperature: 0 to 40°C

  • Storage temperature: -40 to 70°C

  • Humidity: 10-95%

SECURITY

  • Full disk encryption: USB port available

  • Data encryption: Symmetric keys, PKI

  • Device authentication: Protected by device certificates

  • Secure boot: Arm TrustZone

SUSTAINABILITY

  • Charcoal-colored plastic: 54% post-consumer recycled materials

WARRANTY INFORMATION
Enjoy peace of mind with extended warranty coverage for Tap Scheduler, adding one extra year on top of the standard 2-year hardware warranty.
Contact your reseller for availability.
